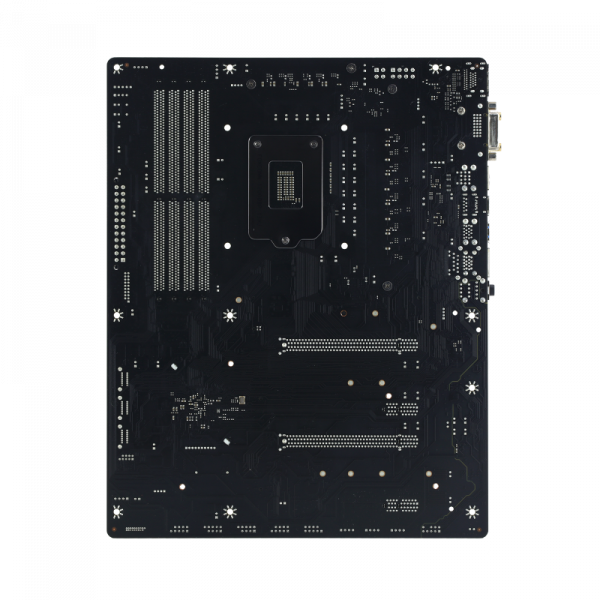

Matična ploča 1200 Biostar Z590A Silver HDMIDPM.2
Šifra: Z590A Silver
ID: 3185678
Besplatna dostava
27.190 rsd
| Tip procesora | Intel |
| Podnožje | Intel® 1200 |
| Čipset | Intel® Z590 |
| Podržani procesori | Support for 10th/ 11th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package |
| Podržana memorija | DDR4 |
| Memorija | Supports Dual Channel DDR4 5000+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 21334 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB MemoryEach DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 moduleSupport Intel Extreme Memory Profile (XMP) memory modules |
| Integrisana grafička karta | By CPU modelSupports DX12Supports HDCP |
| Storage | -- Total supports 3 x M.2 socket and 6 x SATA III (6Gb/s) ports6 x SATA III Connector (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY):Supports M.2 Type 2280 SSD moduleSupports PCIe 4.0 x4 (64Gb/s)Support 11th Gen processor only1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_1):Supports M.2 Type 2260/ 2280 SSD moduleSupports PCI-E 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSDSupports Intel Rapid Storage Technology and Intel Optane Technology1 x M.2 (M Key) Socket (M2_PCIEG3_32G_RST_2):Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD moduleSupports PCIe 3.0 x4 (32Gb/s)Supports Intel Rapid Storage Technology and Intel Optane Technology* M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only.* When using SATA SSD module on M.2 slot(M2_PCIEG3_32G_SATA_RST_1), the SATA_6 connector will be disabled. |
| Mrežna karta | Realtek RTL8125B10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability |
| Zvučna karta | ALC12207.1 Channels, High Definition Audio, Hi-Fi(Front) |
| USB | 1 x USB 3.2 (Gen2x2) Type-C port (1 on rear I/O)2 x USB 3.2 (Gen2) ports (2 on rear I/Os)5 x USB 3.2 (Gen1) ports (3 on rear I/Os and 2 via internal header)6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header) |

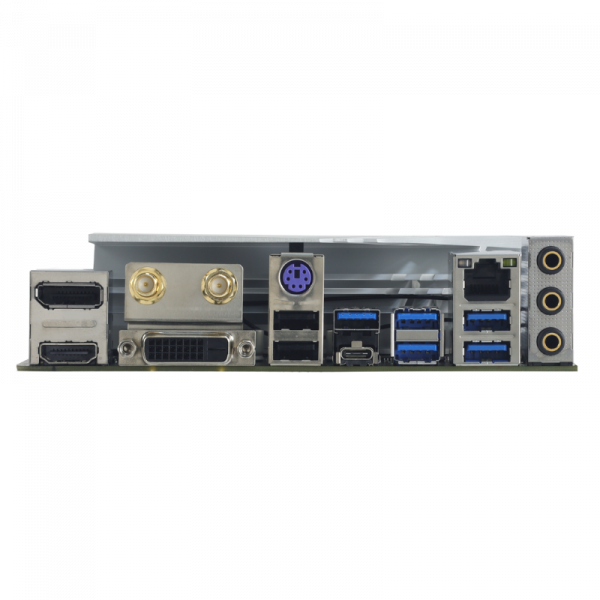

| Konektori na zadnjoj strani | 2 x WIFI Antenna Ports1 x PS/2 Keyboard/ Mouse Port1 x HDMI Port (HDMI2.0)1 x DP Port1 x DVI-D Port1 x USB 3.2 (Gen2x2) Type-C Port2 x USB 3.2 (Gen2) Ports3 x USB 3.2 (Gen1) ports2 x USB 2.0 ports1 x 2.5 GbE LAN port3 x Audio Jack |
| Interni konektori | 6 x SATA III Connectors (6Gb/s)1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)1 x 4-Pin Power Connector1 x 8-Pin Power Connector1 x 24-Pin Power Connector1 x CPU Fan Connector1 x CPU water cooling connector (CPU_OPT)3 x System Fan Connectors1 x Front Panel Header1 x Front Audio Header1 x Internal Stereo Speaker Header1 x Clear CMOS Header1 x COM Port Header1 x TPM Header1 x Thunderbolt 3 Header2 x LED Headers (5V)1 x LED Header (12V)* M.2 (E key) Wi-Fi card is not provided |
Ocena:
DEKLARACIJA
- Naziv artikla
- Matična ploča 1200 Biostar Z590A Silver HDMIDPM.2
- Naziv i vrsta robe
- Matične ploče
- Uvoznik
- Precizan podatak o uvozniku je dostupan na deklaraciji proizvoda
- Prava potrošača
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
